CISPR 15 3-dimensional loop antenna van Veen



  • Schwarzbeck 3d large loop antenna HXYZ9170



HXYZ 9170



Loop Antenna System ( LAS )

3-dimensional large loop antenna

diam. 2 m

acc. EN 55015 / CISPR 15

Socket and Coaxial switch recommended

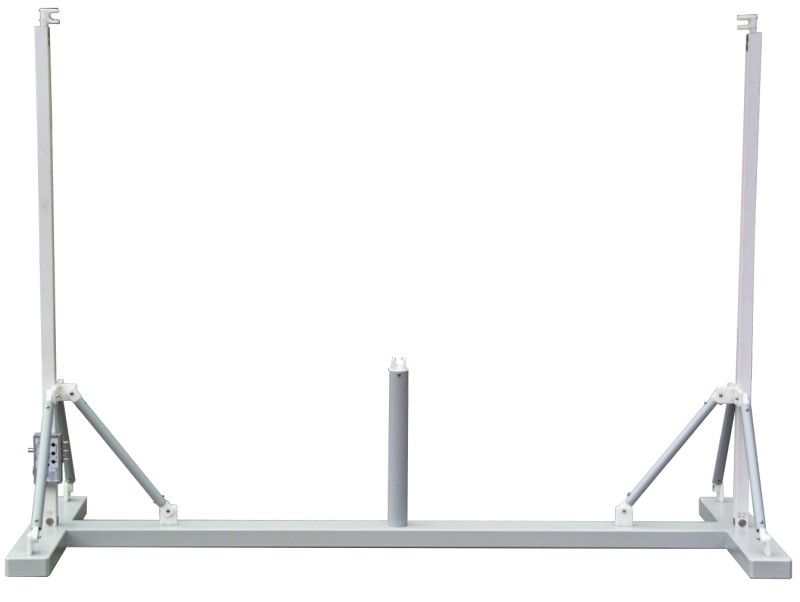

  • Schwarzbeck HXYZ 9170 Sockel



HXYZ 9170 Sockel



Socket and mounting equipment for large loop HXYZ 9170

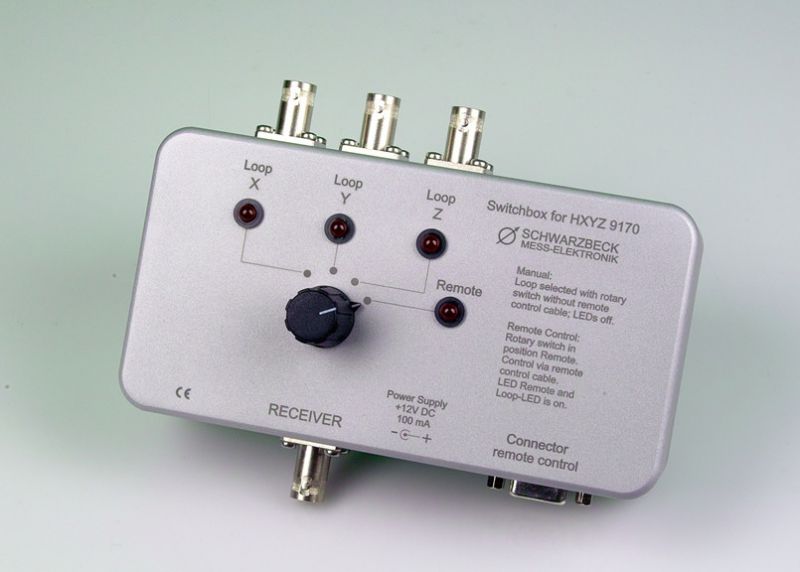

  • Schwarzbeck Switchbox for HXYZ 9170



HXYZ 9170 Umschaltbox



3 in one coaxial switch for manual / remote operation including cable set (3 BNC cables with braid current blockers) for large loop HXYZ 9170









  • HXYZ9170RSAdapter



HXYZ 9170 RS USER Adapter



The HXYZ 9170 - RS adapter is used to connect the switchbox HXYZ 9170 to R&S devices with 25-pin user interface (e.g. ESPI, ZVR, ESCI, ESCS, FSB).









  • Schwarzbeck_HXYZ9170_RS_AUX


HXYZ 9170 RS AUX Adapter



The HXYZ 9170 – RS AUX adapter is used to connect the switchbox HXYZ 9170 to R&S devices with 9-pin AUX interface (e.g. ESL and ESR).

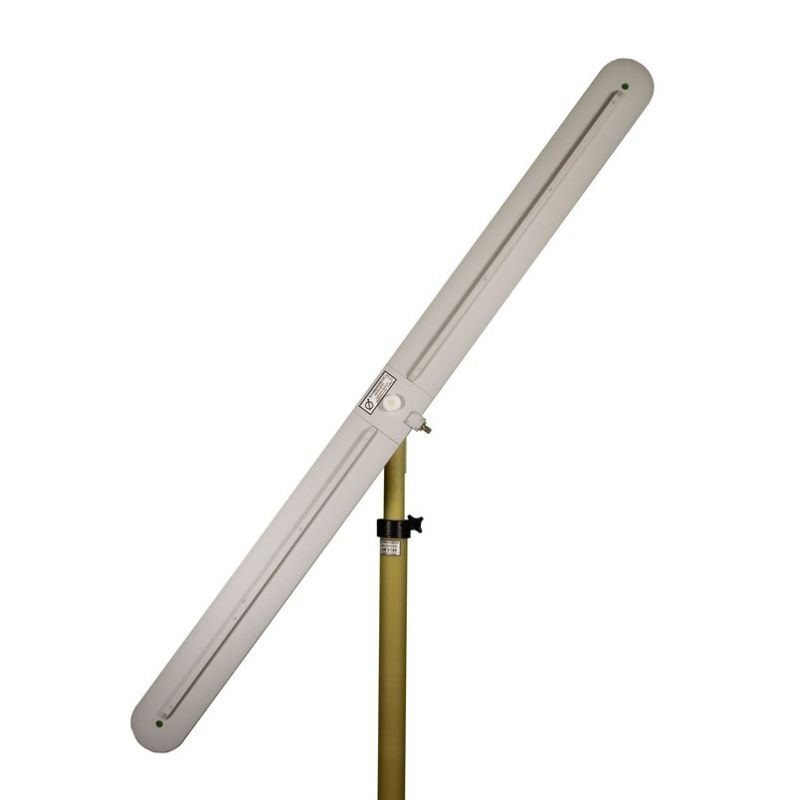

  • Schwarzbeck HFCD 9171 Calibration Dipole



HFCD 9171



Calibration Balun / Dipole for HXYZ 9170 (recommended accessory: Antenna Mast AM 9144)











  • CDA 9271
  • CDA9271

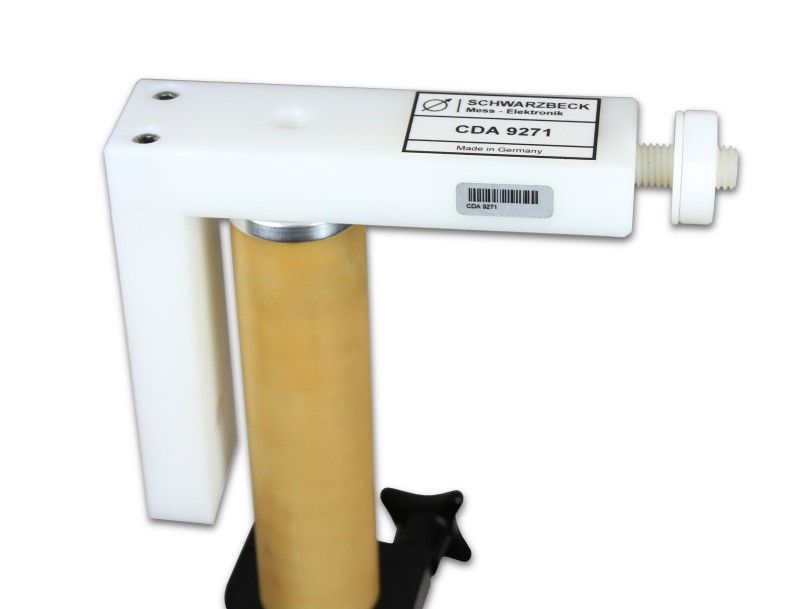

CDA 9271



Adapter to hold HFCD 9171 on Antenna Mast AM 9144, 3/8" female large camera thread.

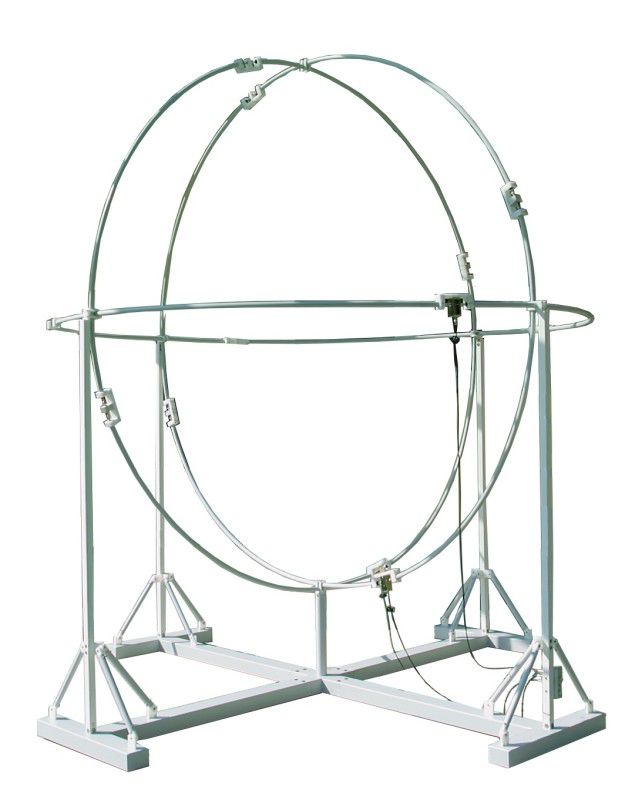

  • HXYZ 9170 3m van Veen loop



HXYZ 9170 3m



Loop Antenna System ( LAS )

3-dimensional large loop antenna

diam. 3 m

acc. EN 55015 / CISPR 15
